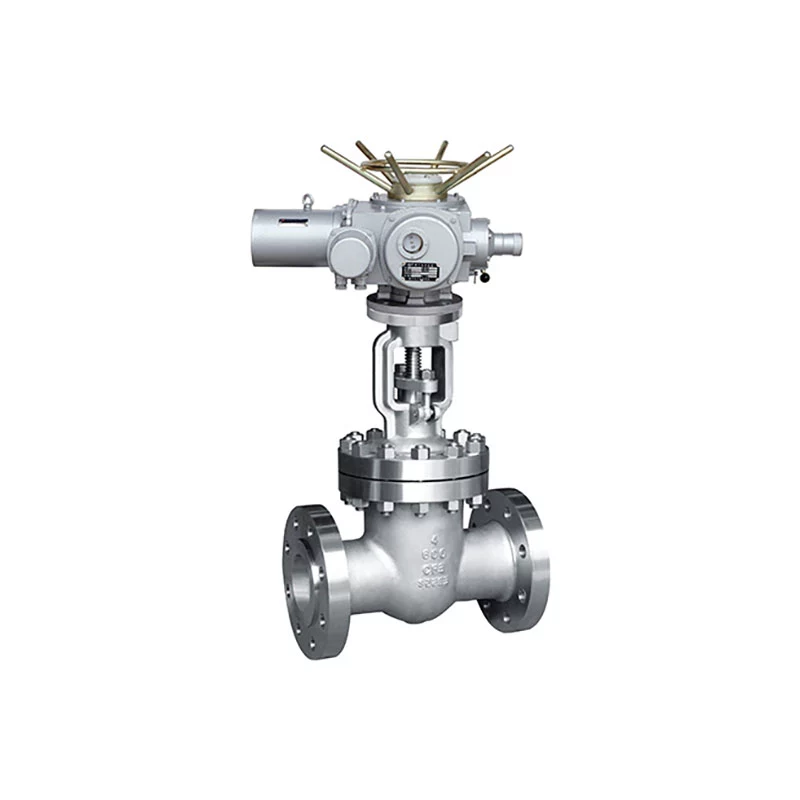

Stainless Steel Gate Valve

Design Features:

Pressure Range: Class 150 ~ 2500
Nominal Size Range: DN 15 ~ 900, NPS 1/2" ~ 36"
Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW), Threaded (NPT), Screwed
Full Port Design
Out Side Screw and York (OS & Y)
Bolted Bonnet (BB)
Rising Stem or Non-Rising Stem Hand Wheel
Renewable seat rings


Design Specifications:

Design and Manufacture: API 600, API 6D
Face to face (end to end): ANSI B16.10
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API 598, API 6D
Wall thickness: API 600

All valves are designed to comply with the requirements of ASME B16.34, and the ASME as well as customers' requirements as applicable.



Body Material:

A351-CF8M (18Cr–9Ni–2Mo), A351-CF3M (18Cr–9Ni–2Mo)


Actuators:

Gear, Electric, Cylinder, Pneumatic, Hydraulic, Hand wheel, Chain wheels
