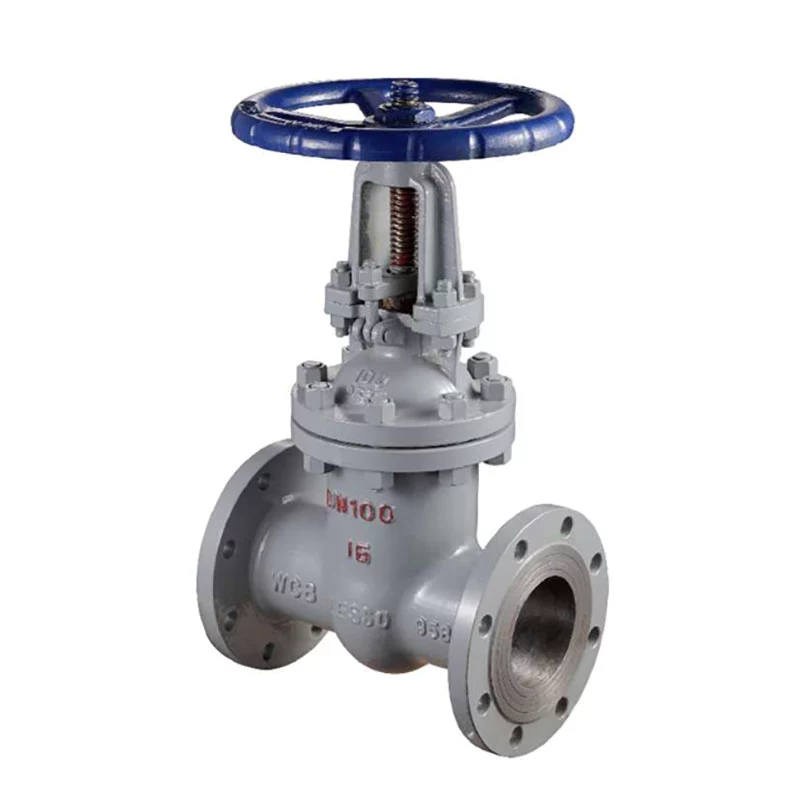

API Gate valve

Design Features:

Pressure Range: Class 150 ~ 2500
Nominal Size Range: DN 15 ~ 900, NPS 1/2" ~ 36"
Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW), Threaded (NPT), Screwed
Full Port Design
Out Side Screw and York (OS & Y)
Bolted Bonnet (BB)
Rising Stem or Non-Rising Stem Hand Wheel
Renewable seat rings

Design Specifications:

Design and Manufacture: API 600, API 6D
Face to face (end to end): ANSI B16.10
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API 598, API 6D
Wall thickness: API 600


All valves are designed to comply with the requirements of ASME B16.34, and the ASME as well as customers' requirements as applicable.


Body Material:

A216-WCB (Carbon Steel), A217-WC6 (1-1/4Cr-1/2Mo), A217-WC9 (2-1⁄4Cr–1Mo), A217-C5 (5Cr–1⁄2Mo), A217-C12 (9Cr–1Mo), A352-LCB (Carbon Steel), A352-LCC (Carbon Steel), A351-CF8M (18Cr–9Ni–2Mo), A351-CF3M (18Cr–9Ni–2Mo)


Actuators:

Gear, Electric, Cylinder, Pneumatic, Hydraulic, Hand wheel, Chain wheels
