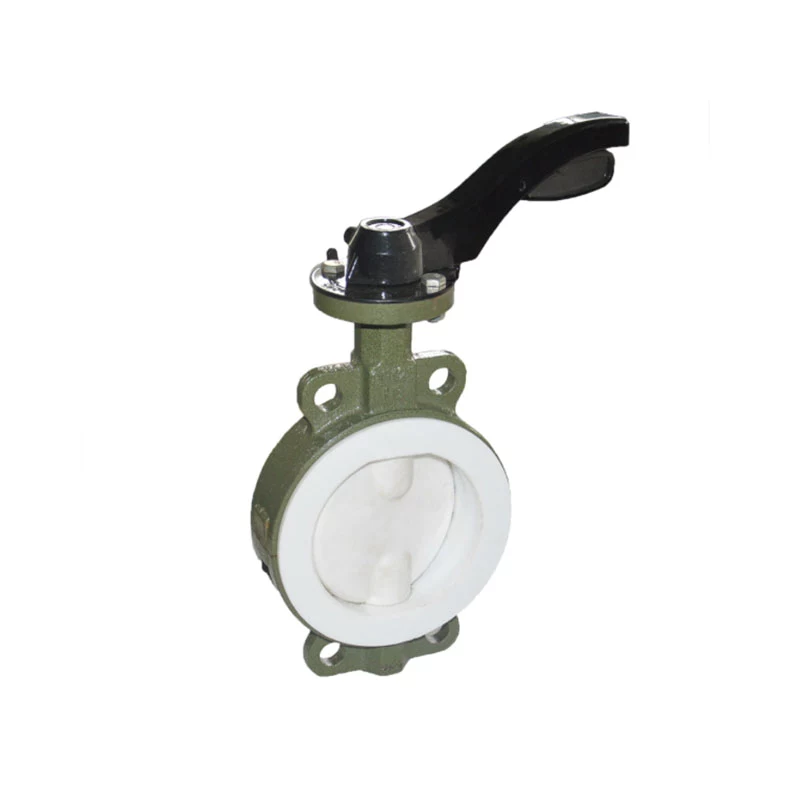

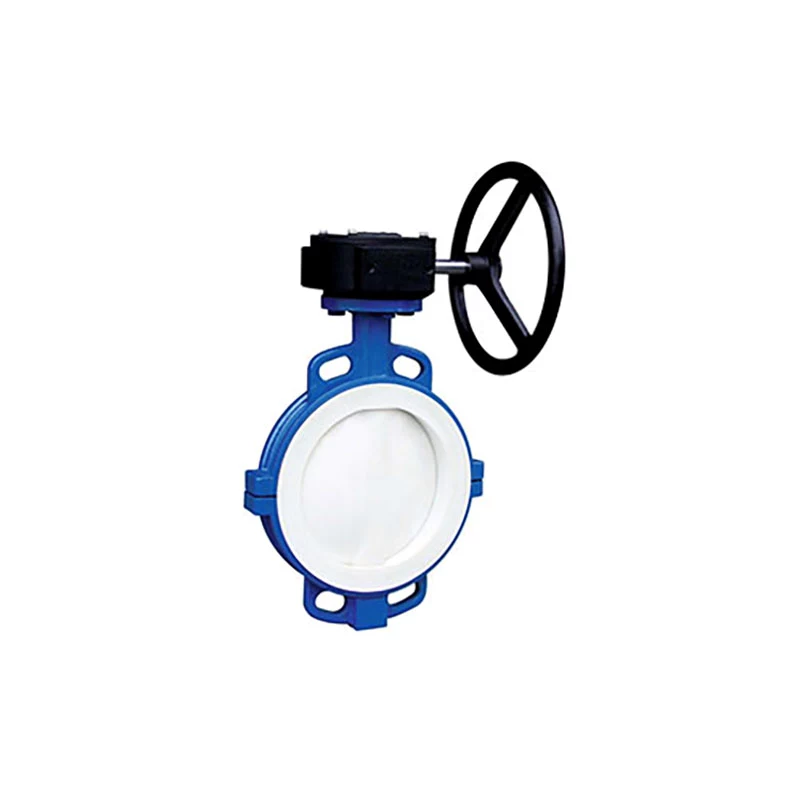

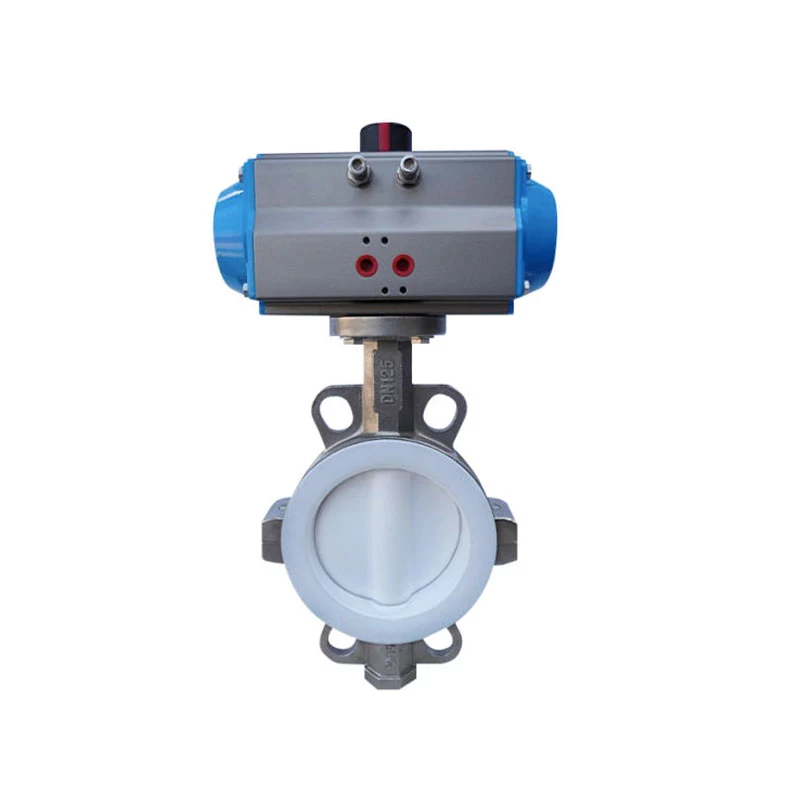

Lined Butterfly Valve
alve Size: 1-1/2 to 12 inches (DN40 to DN600mm)
Pressure: CLASS150~CLASS900 (PN10~PN160)
Temperature: -40 to +230 degrees Celsius
Butterfly Valve Connection: wafer
Butterfly Valve Sealing: resilience seated (PTFE)
Manufacturing standards: API, ANSI, BS, DIN and JIS
- Pressure Rating
- CL150~CL900 (PN10~PN160)
- Connection
- Wafer
- Design Standard
- API, ANSI, BS, DIN and JIS
- Material
- Cast iron, ductile iron, carbon steel and stainless steel
Our TIX can supply PTFE Lined Butterfly Valves with Applicable Temperature of -40 to +230 Degrees Celsius.
Valve Size: 1-1/2 to 12 inches (DN40 to DN600mm)
Pressure: CLASS150~CLASS900 (PN10~PN160)
Temperature: -40 to +230 degrees Celsius
Butterfly Valve Connection: wafer
Butterfly Valve Sealing: resilience seated (PTFE)
Manufacturing standards: API, ANSI, BS, DIN and JIS
Valve Body materials: cast iron, ductile iron, carbon steel and stainless steel
Product Information
Concentric design of body, stem and disc
Compact structure and light weight
Corrosion-resistant
Lining PTFE and full disc clad
Reliable internal and external sealing
